The PVE NL range of piling hammers are designed for driving precast and cast in-situ concrete piles, casing piles and sheet piles into cohesive soils, very dense granular soils and rock (depending on strength).
The NL hydraulic impact hammers are designed for fitment onto the Woltman piling rigs. However, they can also be crane suspended.
These versatile hammers can be adapted to suit with the addition or removal of dropweights to create the desired impact energy by means of a modular system. Energy outputs range from 20kNm to 520kNm making them ideal for cohesive soils, very dense granular soils and soft rock.
How can we help?
“Whether you are driving steel, timber or concrete piles, we can help you find the perfect piling hammer for your requirements.”
Scott
Models
| Ram Mass (kg) | 3000 |
|---|---|
| Max. Impact Energy (kNm) | 43 |
| Blow Rate (bpm) | 40 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Ram Mass (kg) | 4000 |
|---|---|
| Max. Impact Energy (kNm) | 57 |
| Blow Rate (bpm) | 40 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Ram Mass (kg) | 5000 |
|---|---|
| Max. Impact Energy (kNm) | 72 |
| Blow Rate (bpm) | 40 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Ram Mass (kg) | 6000 |
|---|---|
| Max. Impact Energy (kNm) | 86 |
| Blow Rate (bpm) | 40 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Ram Mass (kg) | 7000 |
|---|---|
| Max. Impact Energy (kNm) | 101 |
| Blow Rate (bpm) | 40 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Ram Mass (kg) | 9000 |
|---|---|
| Max. Impact Energy (kNm) | 127 |
| Blow Rate (bpm) | 40 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Ram Mass (kg) | 10000 |
|---|---|
| Max. Impact Energy (kNm) | 155 |
| Blow Rate (bpm) | 30 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Ram Mass (kg) | 12000 |
|---|---|
| Max. Impact Energy (kNm) | 212 |
| Blow Rate (bpm) | 30 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Ram Mass (kg) | 14000 |
|---|---|
| Max. Impact Energy (kNm) | 247 |
| Blow Rate (bpm) | 30 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Ram Mass (kg) | 16000 |
|---|---|
| Max. Impact Energy (kNm) | 282 |
| Blow Rate (bpm) | 30 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Ram Mass (kg) | 18000 |
|---|---|
| Max. Impact Energy (kNm) | 318 |
| Blow Rate (bpm) | 30 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
Specification Table
| Model | 3NL | 4NL | 5NL | 6NL | 7NL | 9NL | 10NL | 12NL | 14NL | 16NL | 18NL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Available to buy | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Available to hire | No | No | No | No | No | No | No | No | No | No | No |
| Technical Specifications | |||||||||||
| Ram Mass (kg) | 3000 | 4000 | 5000 | 6000 | 7000 | 9000 | 10000 | 12000 | 14000 | 16000 | 18000 |
| Max. Impact Energy (kNm) | 43 | 57 | 72 | 86 | 101 | 127 | 155 | 212 | 247 | 282 | 318 |
| Blow Rate (bpm) | 40 | 40 | 40 | 40 | 40 | 40 | 30 | 30 | 30 | 30 | 30 |
| Operating Pressure (bar) | 140 | 155 | 165 | 175 | 185 | 235 | 150 | 170 | 200 | 230 | 260 |
| Hydraulic Flow Required (L/min) | 390 | 390 | 390 | 390 | 390 | 390 | 350 | 650 | 650 | 650 | 650 |
| Typical Dimensions | |||||||||||
| Basic Hammer - Length (mm) | 5020 | 5390 | 5760 | 6130 | 6500 | 6870 | 6800 | 7200 | 770 | 8200 | 8700 |
| Basic Hammer - Weight (kg) | 7200 | 8400 | 9600 | 10800 | 13900 | 16900 | 18900 | 21200 | 24600 | 28000 | |
| Hammer Length (Sheet Piles) (mm) | |||||||||||
| Hammer Weight (Sheet Piles) (kg) | |||||||||||
| Hammer Length (Tube Piles) (mm) | |||||||||||
| Hammer Weight (Tube Piles) (kg) | |||||||||||
| Additional information | |||||||||||
| Specification Sheet | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download | Download |
| Sales Enquiry? | Sales Enquiry | Sales Enquiry | Sales Enquiry | Sales Enquiry | Sales Enquiry | Sales Enquiry | Sales Enquiry | Sales Enquiry | Sales Enquiry | Sales Enquiry | Sales Enquiry |
Configuration
Hydraulic hammers can be fitted with a number of accessories that will assist with your piling job. This includes raking slings and noise reduction accessories.
Models can be fitted with
Extension Hoses
Allows for a greater distance between the power pack and the hammer..
Hydraulic Hammer Dolly Pile
Allows large tubes to be installed which are too big to go in the hammer pile guide.
Hydraulic Hammer Pile Extension
A block placed between the head of the pile and the ram of the driver to form an extension to the length of the pile. Allows piles to be driven underwater whilst hammer stays above the water.

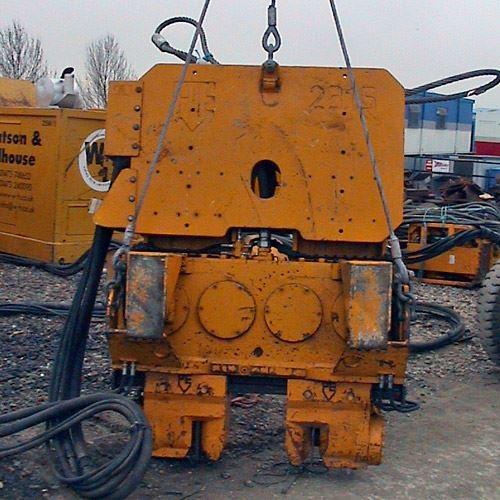

Raking Sling Assembly
Enables the hammer to drive at an angle (by prior arrangement with Watson & Hillhouse).
Pile Types: Install and Extract
Z Single Piles
Z Double Piles
U Single Piles
U Double Piles
H Piles
Straight Web Sections
Tube Piles
Timber Piles
Concrete Piles
Trench Sheets
Box Piles
Further Info
PVE offers a very sophisticated insulating system for the PVE NL impact hammer range. With the sound insulating system sound reductions up to 10 dB are possible compared to a standard impact hammer. PVE NL impact hammers are continuously subject to further developments for sound proofing and efficiency.
- High reliability and durability
- Efficient exchangeable drive caps and sleeves
- High blow rates
- Additional sound reduction systems available
- Professional monitoring and reporting by the Measure Strike System
- Adjustable drop weight due to the modular system of the impact hammers
